Kuwait's trusted supplier of voltage preventers, phase preventers, and phase sequence relays for air conditioning and HVAC systems. Single-phase and three-phase models in stock to protect your compressor and motor windings from the voltage fluctuations that cause most preventable AC failures in Kuwait. Broyce and India brands available, with delivery across all of Kuwait.

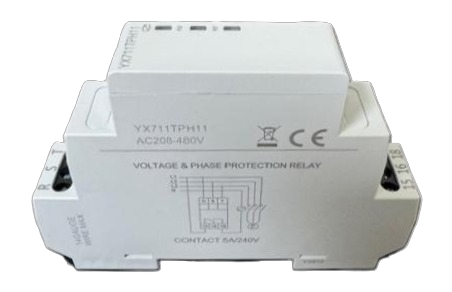

An AC preventer — also called a voltage protection relay or phase protection relay — is a small electronic device wired into the power supply of an air conditioning unit. Its function is to continuously monitor the incoming electrical supply and immediately disconnect the AC system if the voltage or phase conditions fall outside the safe operating range of the compressor and motors. When the supply returns to normal, the preventer waits through a built-in time delay before allowing the AC to restart, protecting the compressor from the dangerous short-cycling that would otherwise occur during repeated supply fluctuations.
In Kuwait, AC preventers are not optional equipment — they are essential. The electricity grid in Kuwait experiences significant voltage stress during summer, when extreme heat drives air conditioning demand to its peak. During peak hours, supply voltage in residential areas can drop well below 200V as local distribution transformers operate near capacity. Conversely, when large industrial or commercial loads disconnect suddenly, voltage can spike above safe limits. Three-phase supplies serving commercial AC systems are additionally vulnerable to phase loss — a fault where one of the three phases disappears entirely — which causes three-phase compressors to run on two phases, overloading the remaining windings and burning out the motor within minutes. A preventer that costs a few KWD prevents a compressor failure that can cost hundreds to replace.
We stock single-phase voltage preventers, three-phase phase sequence relays, and models from leading brands — Broyce and India — to suit all residential and commercial AC systems in Kuwait.
Designed for single-phase AC supplies (220–240V, 50Hz), these preventers monitor the incoming voltage and disconnect the AC system if voltage rises above the high-voltage threshold or falls below the low-voltage threshold. User-adjustable setpoints allow the protection range to be calibrated to the local supply conditions. A built-in time delay — typically 3 to 5 minutes — prevents the compressor from restarting immediately after a supply fluctuation, protecting against short-cycling. The most common type of preventer used in residential split AC systems across Kuwait.
Browse Single-Phase PreventersFor three-phase AC systems operating on Kuwait's 415V three-phase supply. These relays detect phase loss (one phase disappearing), phase reversal (incorrect phase sequence that causes compressors to run backwards), and phase imbalance (unequal voltages across the three phases) — all of which can cause three-phase compressors to fail catastrophically within minutes if unprotected. Essential for commercial AC systems, rooftop units, and any HVAC installation drawing three-phase power. The phase sequence protection also prevents incorrect reconnection after maintenance, which can otherwise reverse compressor rotation.
Browse Three-Phase PreventersWe stock preventers from two trusted brands: Broyce, a UK-based manufacturer known for high-quality DIN rail-mounted protection relays used widely in commercial and industrial HVAC installations; and India brand preventers, the most widely used compact preventer in Kuwait's residential and light commercial market, recognized by every HVAC technician in Kuwait. Both brands offer reliable voltage and phase protection with clear LED indication and adjustable setpoints. We maintain stock of both boxed and loose units to serve both retail and wholesale customers.
Browse All Preventer BrandsAn AC preventer is wired in series with the power supply to the AC unit's contactor or directly into the control circuit. The relay contains a voltage-sensing circuit that continuously compares the live supply voltage to a set of programmable threshold values — a high-voltage trip point and a low-voltage trip point. When the supply voltage crosses either threshold, the relay de-energises its output contact, which opens the circuit to the compressor and fan motors, stopping the AC unit. The relay also monitors phase sequence and phase presence on three-phase models. A timing circuit within the relay then starts counting down a preset time delay — typically between 1 and 5 minutes, adjustable on most models. Only after the supply has been within the acceptable range for the entire duration of the time delay will the relay re-energise its output and allow the AC to restart. This delay is critical: it prevents a compressor from restarting immediately after a trip, which could happen tens of times per hour during a period of supply instability, and each attempted start under abnormal supply conditions stresses the compressor windings.
The first selection criterion is the supply type. Single-phase preventers are designed for 220–240V single-phase supplies and are used in all residential split AC systems and most light commercial window units in Kuwait. Three-phase preventers are required for any AC system drawing three-phase power — typically commercial packaged units, rooftop systems, and large central AC installations in office buildings and industrial facilities. Using a single-phase preventer on a three-phase supply will leave the system completely unprotected against the most destructive three-phase fault modes: phase loss and phase reversal.
The second selection criterion is the current rating of the preventer's output contact. The preventer's contact must be rated to switch the current drawn by the contactor coil or load it controls. Most residential applications are well within the contact rating of standard preventers. For large commercial systems where the preventer is wired to switch a high-current load directly, confirm the contact rating before installation.
Kuwait's standard residential supply is 240V AC ±10%, meaning the utility's stated tolerance band runs from approximately 216V to 264V. In practice, during peak summer demand, measured voltages in residential areas frequently drop to 200–210V — below the lower edge of the stated tolerance. For Kuwait conditions, a recommended low-voltage trip setting is 190–200V, which trips the preventer when voltage drops below a level that would cause compressor motor damage without being so sensitive that normal fluctuations cause nuisance trips. The high-voltage trip is less critical in residential Kuwait but is typically set at 255–260V. For three-phase systems, the phase imbalance threshold should be set conservatively; a 5–10% imbalance setting is typical for Kuwait commercial installations where the three-phase supply can be uneven.
The time delay after supply restoration is one of the most important settings on a preventer. A compressor that has just stopped — whether due to a normal cycle-off or a protection trip — has high-pressure refrigerant in the discharge line that has not yet equalised across the system. Attempting to restart the compressor before pressure equalisation forces the motor to start against high pressure, drawing locked-rotor current and stressing the motor windings. In Kuwait's high-pressure refrigerant systems operating in summer heat, pressure equalisation can take 3–5 minutes. A time delay of 3–5 minutes is the recommended setting for Kuwait conditions. Shorter delays may allow compressor restart before pressures have equalised, particularly for larger systems with higher refrigerant charges.
AC preventers are typically wired into the AC unit's control circuit, in series with the thermostat signal that energises the compressor contactor, rather than in the main power circuit. This means the preventer's output contact switches a low-current control signal, not the full load current of the compressor — a much safer and more practical arrangement that the preventer's contact rating easily handles. The preventer draws its power from the same supply it is monitoring, so it is always active as long as the supply is present. Some installations wire the preventer into the main supply to the entire AC unit, including the indoor fan circuit — this is acceptable but means the indoor unit also stops when the preventer trips, which may be preferred for complete protection. Always follow MEW (Ministry of Electricity and Water) regulations for AC electrical work in Kuwait, and ensure all wiring is done by a qualified technician.
AC preventers themselves have a long service life when they are not repeatedly exposed to extreme fault conditions. However, in Kuwait's electrical environment, a preventer that has tripped hundreds of times over several summers — each trip cycling the relay contact — may develop contact wear, and the relay's internal timing components can drift over time, causing the time delay to shorten or lengthen unpredictably. Signs that a preventer may need replacing include: the AC unit not restarting after a normal supply restoration, the time delay appearing much shorter or longer than the setting, the LED indicator behaving abnormally, or the relay failing to trip during a known undervoltage event. Given the low cost of a preventer relative to the cost of a compressor, preventive replacement every 3–5 years is reasonable for high-usage commercial systems in Kuwait.
Kuwait's most trusted HVAC parts supplier — genuine preventer brands, expert selection support, and fast delivery.
We stock Broyce and India brand preventers — the same brands HVAC technicians across Kuwait have relied on for decades. No unbranded, untested relays with unknown setpoints and unreliable contacts that leave compressors unprotected when it matters most.
Free delivery on orders over 50 KWD to all areas — Hawally, Ahmadi, Salmiya, Farwaniya, Jahra, and the Capital. In-stock preventers are dispatched same day or next business day. Walk-in pickup available at our Hawally and Ahmadi branches.
Not sure whether you need a single-phase or three-phase model, or which settings to use for your installation? Our team can advise on the correct preventer type and recommended voltage settings for Kuwait's electrical conditions — same day support for HVAC technicians and contractors.
HVAC contractors, building maintenance companies, and service teams can apply for trade accounts with volume pricing on preventers, with quantity-based wholesale terms or minimum order requirements where applicable, and all other HVAC protection devices. Pay securely online via KNET, Visa, or Mastercard.
Common questions from HVAC technicians and customers in Kuwait about buying and installing voltage and phase preventers.
An AC preventer is a protection relay that monitors the electrical supply to an air conditioning unit and disconnects it when voltage or phase conditions fall outside safe operating limits. It detects overvoltage, undervoltage, phase loss, and phase reversal, and trips the circuit before these faults can damage the compressor or motor windings. After the supply stabilises, a built-in time delay ensures the AC waits before restarting — preventing the short-cycling that damages compressors during supply instability.
A voltage preventer is for single-phase supplies and protects against high and low voltage faults. A phase preventer (phase sequence relay) is for three-phase supplies and additionally protects against phase loss, phase reversal, and phase imbalance. Both include a time-delay restart function. Residential split AC systems use single-phase voltage preventers; commercial systems drawing three-phase power need a phase preventer.
In Kuwait, AC preventers protect against: overvoltage (above ~260V on a 240V supply), undervoltage (below ~185–200V during peak summer demand), phase loss on three-phase supplies (one phase disappearing, which causes compressors to burn out within minutes), phase reversal (wrong phase sequence causing compressors to run backwards), and rapid voltage fluctuations during summer peak demand when the grid is under stress.
Kuwait's electricity grid experiences significant voltage fluctuations during summer peak demand. Residential areas can see undervoltage when local transformers are overloaded; commercial areas can see overvoltage spikes. Three-phase supplies are vulnerable to phase loss during partial outages. A compressor running under these fault conditions draws excessive current, overheats its windings, and fails — a repair costing far more than the preventer itself. In Kuwait's electrical environment, a preventer is essential insurance for any AC system.
When a preventer trips, the AC stops completely — the outdoor unit goes off and the indoor unit blows uncooled air or shows an error code. The preventer relay usually has an LED indicator that changes from green to red when tripped. After the supply returns to normal, the preventer's time delay (typically 3–5 minutes) must expire before the AC can restart. If the preventer trips repeatedly, the underlying power quality issue should be investigated rather than bypassing the protection.
Yes — we deliver to all areas in Kuwait including Hawally, Salmiya, Ahmadi, Farwaniya, Jahra, and the Capital. Orders over 50 KWD qualify for free delivery. In-stock preventers ship same day or next business day. Walk-in pickup is available at our Hawally and Ahmadi branches.
Yes. We offer wholesale pricing for HVAC service companies, contractors, and building maintenance teams. Submit a quote request through our website or contact us directly for volume pricing. Trade accounts are available for registered businesses with regular orders.
Browse single-phase and three-phase preventers from Broyce and India — with expert selection support and free delivery across Kuwait.
