Kuwait's trusted supplier of step-down control transformers for air conditioning and HVAC systems. 240V to 24V AC in 40VA and 75VA ratings — the correct transformer for every residential and commercial AC control circuit in Kuwait. Genuine parts and delivery across all of Kuwait.
An AC control transformer is a small step-down transformer installed inside the control panel of an air conditioning system, and it works on the principle of electromagnetic induction. Its role is to reduce the main supply voltage — 240V AC in Kuwait — down to 24V AC, transferring energy from one circuit to another through the magnetic field without direct electrical connection. This 24V circuit carries the signals between the thermostat, relay coils, and contactor coils that start and stop the compressor and fan motors. Without a functioning transformer supplying stable 24V, the control circuit has no power and the entire AC system fails to respond to any thermostat command. In practical terms, the transformer uses primary and secondary windings, and the voltage depends on the number of turns in each winding.
In Kuwait, AC control transformers are replaced regularly during summer service calls. The combination of sustained high ambient temperatures — outdoor units regularly reach internal temperatures of 70°C or more — and Kuwait's voltage fluctuations during summer peak demand place heavy stress on the transformer's insulation and windings. A transformer operating continuously near its VA rating limit in high heat degrades faster than its rated service life. Short circuits in the 24V control wiring, common in older systems with damaged insulation, also cause transformers to fail by overloading the secondary winding beyond its rated capacity.
We stock step-down control transformers in both standard VA ratings used across residential and commercial HVAC systems in Kuwait — matched to Kuwait's 240V AC, 50Hz supply.
The standard transformer type for HVAC control circuits in Kuwait. Steps down 240V AC mains to 24V AC to power the low-voltage control system, while a step up transformer does the reverse when higher voltage is needed. Used in split AC units, packaged units, and chiller control panels. The primary winding is rated for 240V AC at 50Hz — correct for Kuwait's residential and commercial supply, and alternating current ac must be applied to the primary so voltage is induced in the secondary by the principle of electromagnetic action. The 24V secondary powers thermostat wiring, relay coils, and contactor coils. Available in 40VA and 75VA ratings to match the load of the control circuit and support the input and output relationship under normal operation.

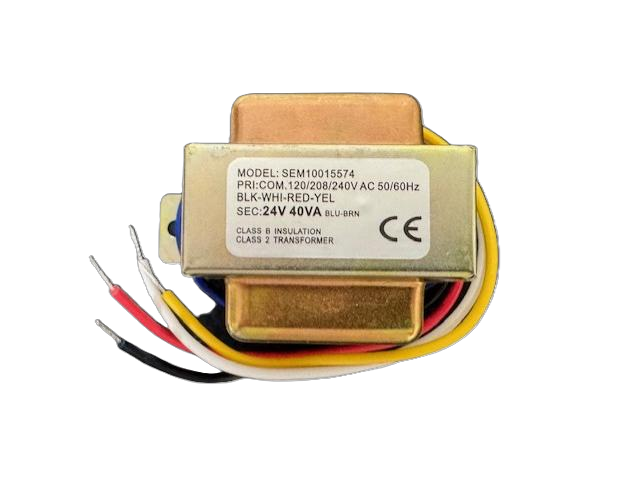

Browse Control TransformersThe 40VA rating is suitable for smaller control circuits — typically single-zone residential split AC systems with one thermostat, one contactor coil, and one or two relay coils. At 24V, transformers can supply approximately 1.67 amps to the control circuit in this 40VA size. If the total connected load on the 24V circuit exceeds the transformer's VA rating, the current in the 24V circuit can contribute to voltage sag, and relay coils may chatter or fail to hold. Confirm the total VA load and number of connected devices before selecting a 40VA unit.

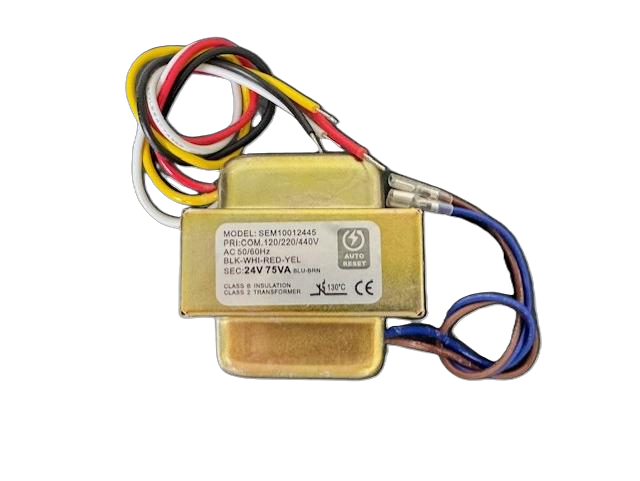

Browse 40VA TransformersThe 75VA rating is used in larger or more complex control systems — commercial packaged units, multi-zone systems, or systems with additional control devices such as economisers, time clocks, or building management interfaces, and a 75VA transformer is used to supply more current to those added controls. At 24V, the current available from a 75VA transformer is approximately 3.1 amps to the control circuit. Using a 75VA transformer in place of a failed 40VA unit is acceptable as long as the physical fit and terminal configuration match — a higher VA rating does not harm the circuit, and there is extra capacity for future load additions.
Browse 75VA TransformersEvery AC control transformer has its specifications printed on the label. The critical values are the primary voltage (VAC) and secondary voltage (VAC), which show the input and output values of a transformer, along with the VA rating and the frequency (Hz). For Kuwait, the primary must be rated 240V AC at 50Hz. The secondary should be 24V AC for standard HVAC control circuits. The VA rating determines the maximum load the transformer can supply — match or exceed the original rating when replacing. The operation of a transformer depends on the voltage, frequency, and the turns ratio shown or implied by the design. If the original transformer label is unreadable, sum the VA ratings of all devices on the 24V circuit (relay coils, contactor coils, thermostat) to determine the minimum transformer VA required and ensure power supply compatibility matches the original circuit requirements.
The most common symptom of a failed control transformer is the AC system being completely unresponsive — the thermostat has no power and neither the indoor nor outdoor unit starts. A burning smell or visible scorch marks near the transformer indicate thermal failure, often caused by an overloaded or short-circuited secondary. A blown fuse on the 24V circuit — many systems have a small glass fuse on the control board — can indicate a transformer that has failed under overload. Testing the secondary terminals with a multimeter while connected from the mains supply should read approximately 24–28V AC; a zero reading with the primary energised can mean there is no voltage in the secondary and confirms transformer failure. Some transformers hum loudly before failure — a sign of loose laminations or an overloaded core, sometimes linked to magnetic flux problems or core saturation.
Always isolate mains power before working on or near the transformer — 240V AC is present at the primary terminals whenever the unit is powered, and valid testing depends on alternating current being present at the primary. To test, first visually inspect for burn marks, cracked insulation, or a swollen body. Then, with power restored carefully and appropriate PPE, use a multimeter set to AC voltage across the secondary terminals. A healthy transformer should read 24–28V AC under light load. A reading of 0V with primary voltage present indicates that no voltage is being induced in the secondary by a magnetic field, pointing to an open-circuit secondary or primary winding. Resistance testing (with power isolated and transformer disconnected) can confirm winding continuity: the primary winding should show a resistance of several hundred ohms; the secondary should show low resistance, typically under 10 ohms for a 24V winding. Infinity on either winding indicates an open circuit and the transformer must be replaced. In normal operation, an iron or iron core provides a magnetic path to couple the windings, and a magnetic short from any winding terminal to the transformer body indicates failure and the transformer must be replaced immediately.
HVAC transformers in Kuwait are subject to operating conditions that accelerate winding insulation degradation. The primary cause is temperature: Kuwait's summer ambient temperatures above 50°C, combined with the heat generated inside an outdoor unit enclosure, push transformer operating temperatures well beyond their rated limits, and the magnetic properties of the core and insulation system degrade faster under this heat. There is less thermal margin when the transformer operates near full load in outdoor enclosures. Insulation materials used in transformer windings have a rated temperature class — for example, Class B (130°C) or Class F (155°C) — and sustained operation above the rated class temperature shortens insulation life exponentially. For every 10°C rise above rated temperature, insulation life is approximately halved. In Kuwait's summer conditions, a transformer rated for 10 years of service life in a temperate climate may fail within two to three years. Kuwait's voltage surges during summer peak demand also stress the primary winding insulation, as overvoltage events above the rated primary voltage drive abnormal current in the primary winding.
A common cause of transformer failure in Kuwait's HVAC systems is an undersized transformer supplying a circuit with more connected load than its VA rating, and transformers can fail when the connected load exceeds the rated output. When the connected load is too high, the current in the secondary winding exceeds the transformer's rated output, the winding temperature rises, and insulation deteriorates. The total VA demand of the control circuit is calculated by summing the VA consumption of each connected device: a standard contactor coil typically draws 5–10 VA; a relay coil draws 2–5 VA; a thermostat subbase draws approximately 1–3 VA. If the total load approaches or exceeds the installed transformer's VA rating, upgrade to the next size. A 75VA transformer is the recommended choice for any system where the total 24V circuit load is unknown or where additional devices may be added. Never use a transformer with a primary rating below the supply voltage — using a 208V-primary transformer on Kuwait's 240V supply will cause the transformer to run hot and fail prematurely, while selecting the right size helps to step the voltage safely to the required control level without overheating.
The primary winding of an AC control transformer is connected directly to the 240V mains supply, while the secondary is connected to the control circuit. Always isolate and lock off the mains supply at the circuit breaker before handling, testing, or replacing the transformer — the primary terminals are live whenever the unit is powered and can deliver a fatal shock. After isolation, verify with a multimeter that the primary terminals read 0V before touching any part of the transformer or connected wiring. When replacing a transformer, ensure the new unit's primary voltage and frequency ratings match the supply exactly — Kuwait's supply is 240V AC, 50Hz — to avoid exposure to an unsafe condition. Ensure the transformer is securely mounted and that all wiring connections are tight and properly insulated. A loose primary connection can arc under load and cause a fire. All electrical work on AC control systems should be carried out by the qualified technician and comply with MEW (Ministry of Electricity and Water) regulations in Kuwait.
Kuwait's most trusted HVAC parts supplier — genuine transformers, expert matching support, and fast delivery.
Every transformer we supply has a clearly verified rating for the correct primary voltage (240V AC, 50Hz) and secondary output (24V AC), with both primary and secondary sides fully specified and a verified VA rating. No unlabelled or unrated substitutes — the kind of cheap transformers that fail within weeks and take the control board fuse with them.
Free delivery on orders over 50 KWD to all areas — Hawally, Ahmadi, Salmiya, Farwaniya, Jahra, and the Capital. In-stock transformers are dispatched same day or next business day. Walk-in pickup also available at our Hawally and Ahmadi branches.
Not sure which transformer fits? Send us the AC unit brand and model or a photo of the failed transformer label. Our team identifies the correct VA rating, primary voltage, and physical configuration for your system, and also checks primary and secondary wiring plus output compatibility before replacement — same day, so your service call is not delayed by a wrong part.
HVAC contractors and service companies can apply for trade accounts for volume pricing on transformers and all other HVAC electrical parts. Pay securely online via KNET, Visa, or Mastercard.
Common questions from HVAC technicians and customers in Kuwait about buying and replacing air conditioning control transformers.
An AC control transformer steps down Kuwait's 240V mains supply to 24V AC to power the low-voltage control circuit of the air conditioning system. This 24V circuit operates the thermostat, relay coils, and contactor coils that switch the compressor and fan motors on and off. Without a functioning transformer providing stable 24V, the control circuit has no power and the AC unit will not start or respond to the thermostat at all.
VA (volt-ampere) is the power capacity of the transformer. A 40VA transformer can supply up to 40VA of power at 24V — approximately 1.67 amps — suitable for simple systems with one or two control devices. A 75VA transformer can supply up to 75VA — approximately 3.1 amps — suitable for larger systems with more relay coils, contactors, or additional control devices. An undersized transformer will run hot, cause output voltage to sag, and fail prematurely.
The most common sign is the AC system being completely unresponsive — the thermostat has no power and nothing starts. Other signs include a burning smell near the control panel, visible scorch marks on the transformer body, a blown 24V fuse on the control board, or a loud humming from the transformer before failure. Testing the secondary terminals with a multimeter while the primary is energised should show approximately 24–28V AC; a reading of zero confirms the transformer has failed.
Kuwait's standard residential supply is 240V AC at 50Hz. You need a transformer with a primary rated for 240V AC at 50Hz and a secondary of 24V AC. Some transformers have a dual-voltage primary (208–240V) which is also suitable for Kuwait's supply. Never use a transformer with a primary rated below the supply voltage — a 208V-primary transformer on 240V will overheat and fail.
Yes — we deliver to all areas in Kuwait including Hawally, Salmiya, Ahmadi, Farwaniya, Jahra, and the Capital. Orders over 50 KWD qualify for free delivery. In-stock transformers ship same day or next business day. Walk-in pickup is available at our Hawally and Ahmadi branches.
Yes. We offer wholesale pricing for HVAC service companies and contractors. Submit a quote request through our website or contact us directly for volume pricing. Trade accounts are available for registered businesses with regular orders.
Kuwait's extreme summer heat accelerates the degradation of transformer winding insulation. For every 10°C above the insulation's rated temperature class, service life is approximately halved. Outdoor unit internal temperatures regularly exceed 70°C in Kuwait summers, pushing transformers well beyond their rated operating temperatures. Kuwait's voltage surges during peak demand further stress the primary winding. Short circuits in aging 24V control wiring — common in older Kuwait installations — overload the secondary winding and cause it to burn out.
